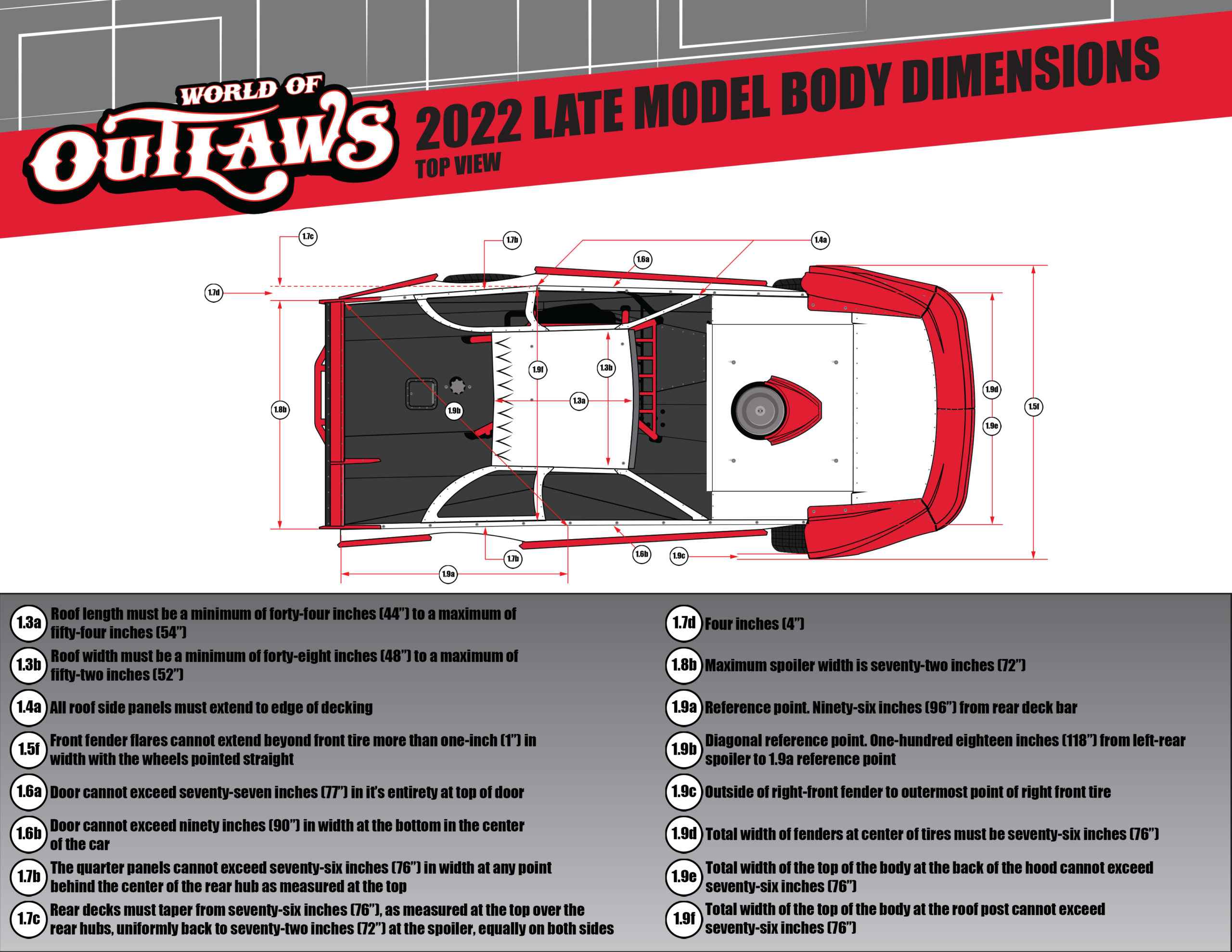

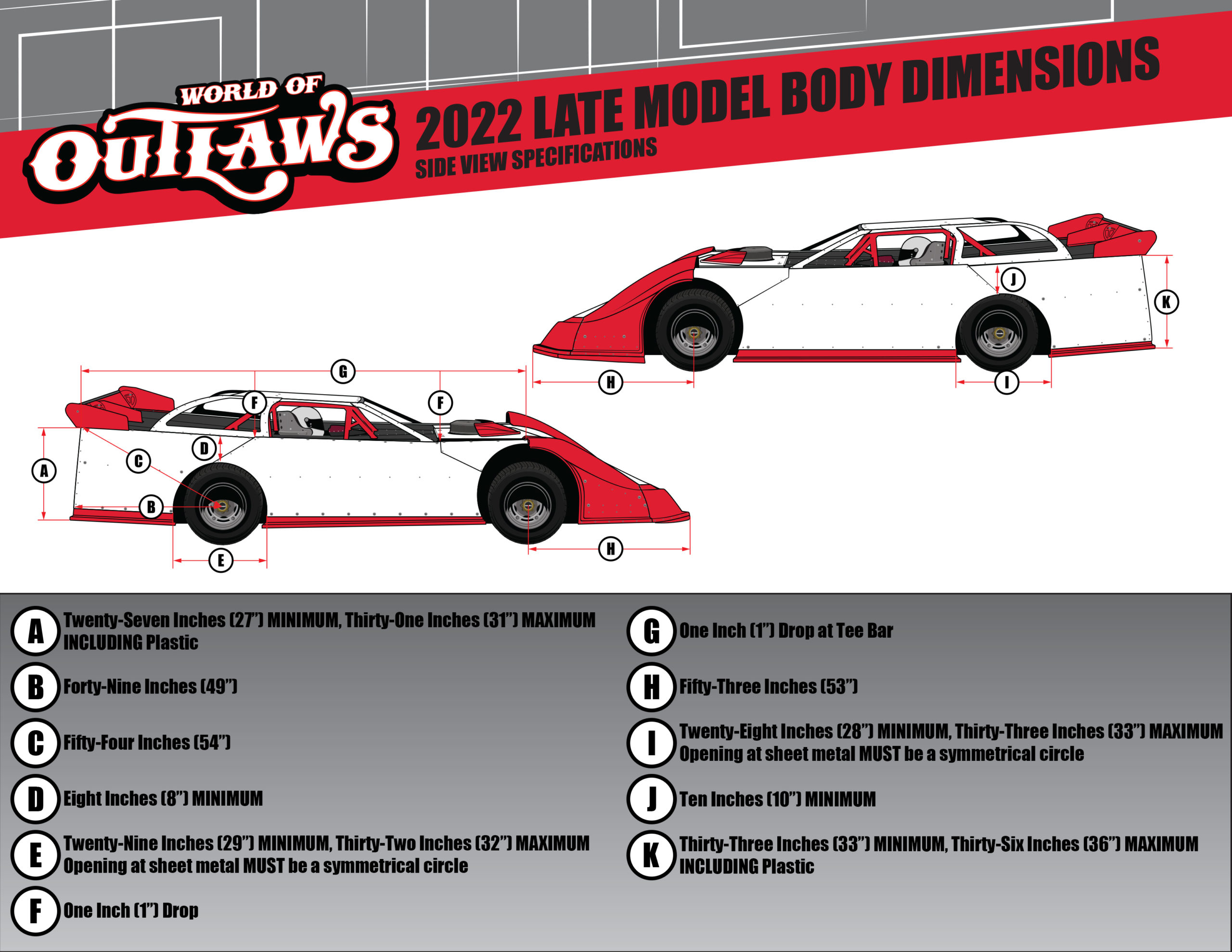

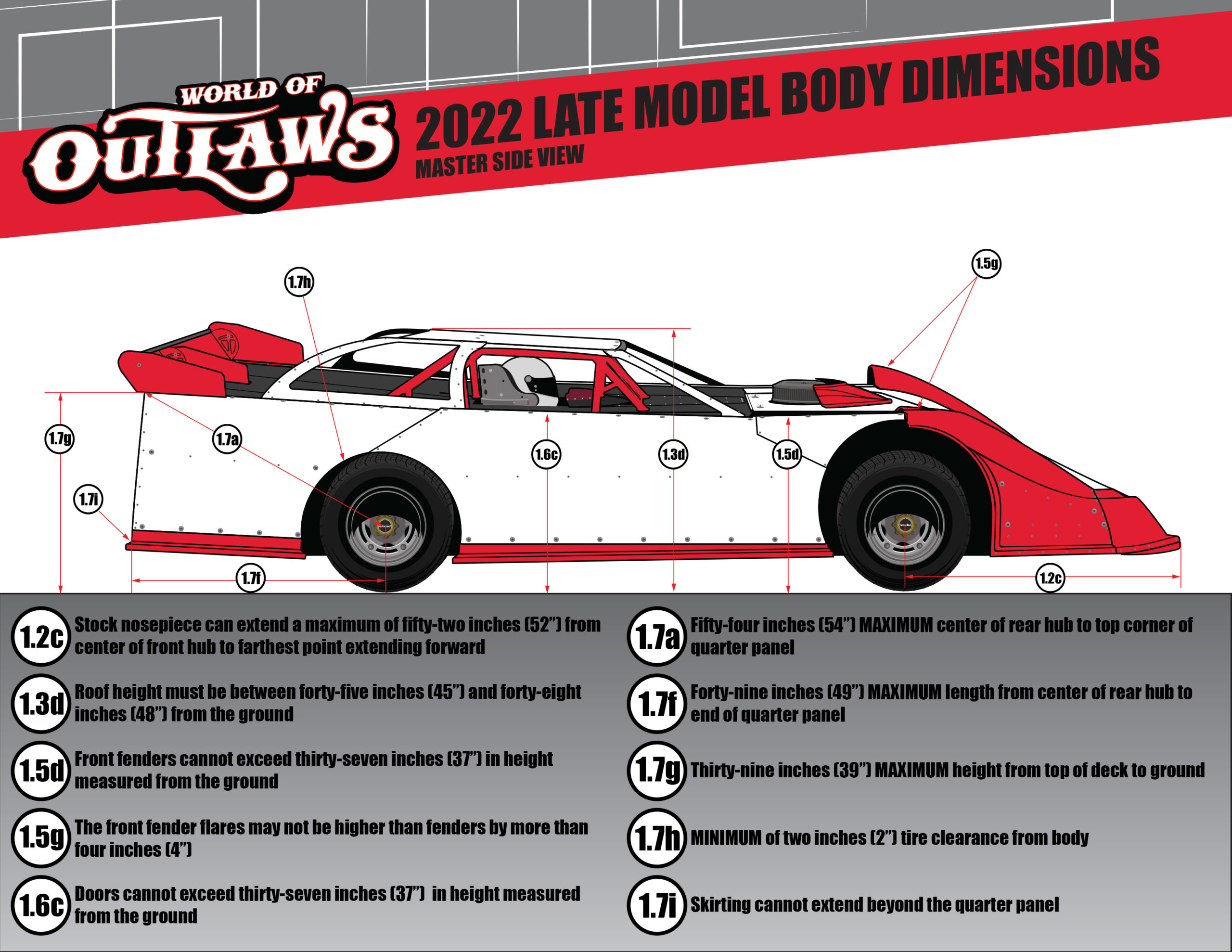

Section 16 — Drawings

You are here:
  1. Home
  2. Late Model Series
  3. Chapter 3 — Technical Rules
  4. Section 16 — Drawings
